Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case package / Customized Delivery Time : 7-10 working days
Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan , China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY- 185

Detail Information

Name: Safe Operation Walnut Olive Cashew Nut Oil Extracting Machinery For Home Use Model: 6YY - 185
Raw Material: Kinds Of Seeds Usage: Cold & Hot Pressing
Power: 2.2 Kw / 1.1 Kw Working Pressure: 60 MPa
Oil Rate: 98% Key Word: Walnut Cooking Oil Presser
HS Code: 8479200000 Voltage: Single/ 3 Phase
High Light:

avocado oil press machine

,

electric oil press machine

,

hydraulic oil extractor

Product Description

Safe operation walnut olive cashew nut oil extracting machinery for home use

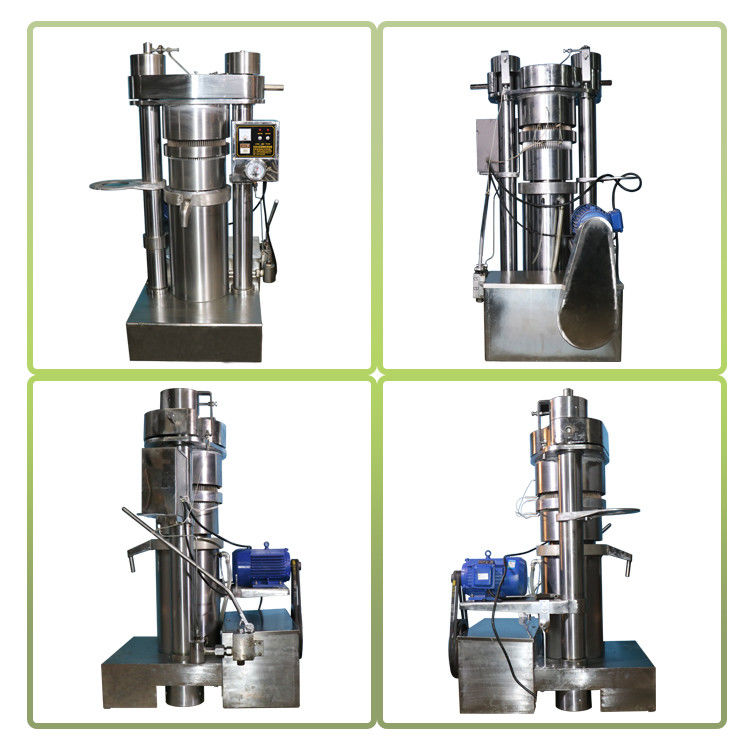

Different sides of our 6YY-185 model:





Our hydraulic machine can press kinds of oil seeds, like below :



Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 0

What can our machine do?

1. Our machine can hot press, the workflow is :

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 1

2. Our machine also can cold press oil, the cold pressed oil is healthier than hot pressed oil and refinery oil:

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 2

Where are our machines can be used?

1.  Pressing oil line:

If you are the oil manufacturer, you need a pressing oil line, our machine also is suitable for you.( We also can provide a whole line for you.)

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 3

2. Portable pressing oil:

Our machine is small, if you need pressing oil and sell it directly, our hydraulic machine also suitable for you. You can take it anywhere you want to go.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 4

How do our machines work?

This machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 5



Parameter of our machines:

We also have other models for your choose, if you are interested anyone, please contact us freely.



Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%


















































Detail show

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 6



Safety assured of our machines:

Large screw

This part is strong, it can protect the user and machine safety. And our large screw needn't adjust the distance, easy to operate and more safe than other machines.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 7

Pressure gauge with electric contact:

It can release the pressure automatically when the working pressure higher than 60Mpa.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 8

Motor cover

It can protect the motor service life.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 9

Pressure release valve

Control the suitable working pressure, over pressure will release automaticlly.



The Consumables of our hydraulic machine:

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 10


Our service



1. Pre-sale service:

We offer different solution for different request and material.

Factory view accepted.

Test machine accepted.

7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

Safe Operation Cashew Nut Oil Extracting Machinery Cold / Hot Pressing 11
